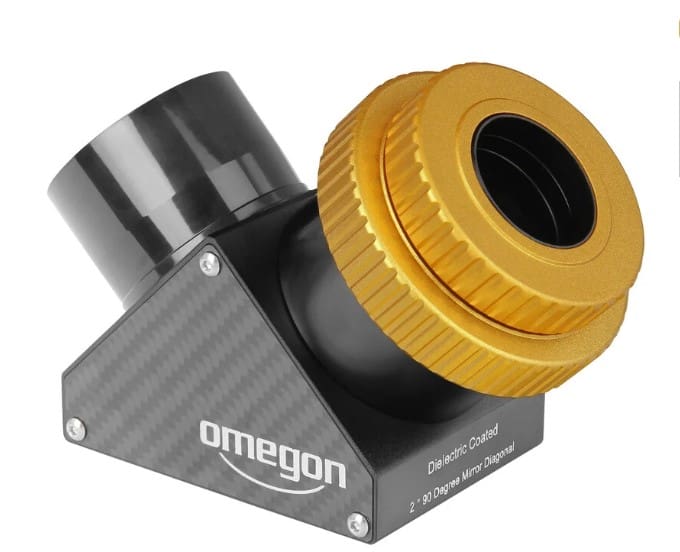

Carbonline 2”, 90° mirror star diagonal, 99% dielectric


The power of the golden ring – premium mirror star diagonal with Twist-Lock system for a strong yet gentle grip. Safely attach your accessories! The Omegon 2″ or 2″ SC Twist-Lock star diagonal (depending on the model) attaches eyepieces, cameras and adapters as if they were welded to the telescope. One quick twist is enough, and your eyepiece is firmly but gently both attached and centred.

In stock

SKU: 53634 Category:


The advantages in a nutshell

  • Mirror star diagonal with Twist-Lock – automatically centres your accessory
  • No clamping screws – your accessories extremely tightly gripped but will not be damaged.
  • Bright images – 99% reflection mirror coating, so you can see everything that’s there.
  • Carbon-fibre look – carbon-fibre side-walls

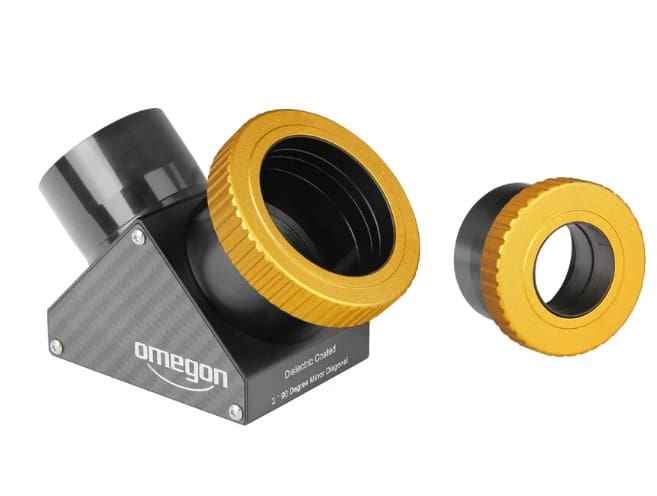

  • 2”/1.25” adapter with centring clamp
  • Change accessories with a single twist

It has never been easier! You can now change your accessories in the blink of an eye, and even in darkness, with a certainty that was never possible with mirror star diagonals attached via a clamping screw. Insert your eyepiece into the star diagonal, twist the fluted golden ring – and already the eyepiece sits there, rock solid.

Nothing slips or wobbles here – not even by a millimeter! The big advantage – gentle clamping and precisely centred accessories.

How is it different to other mirror star diagonals?: In a standard mirror star diagonal, a clamping screw is used to fix the accessory in place. But if screwed too tight it can leav an ugly scar on the eyepiece barrel. And who wants that, when they have spent a several hundred euros on their eyepiece or camera? Your accessories will always keep their value when used with this mirror star diagonal.

Dielectric mirror – bright, high-contrast images: The Omegon mirror star diagonal provides you with a particularly bright, high-contrast image. This is achieved using multiple vapour-deposited dielectric layers, which are very tough and therefore durable. The star diagonal’s mirror achieves a reflectance of 99%. Observers prefer as much light as possible, and this mirror offers a much brighter image than a normal mirror with an aluminium coating.

Connection (to the telescope) 2″
Viewing posture 90°
Coating of optical system dielectric
Surface reflection 99
Weight (g)580
Special features
Correction of vertically reversed image yes

Correction of horizontally reversed image
Ring clamp yes
Colour Black-gold
Series Pro
Overall size LxWxH (cm)13×6,8×9
Material Alu, Carbon
Type Deviating optics
Type of build Diagonal mirror
