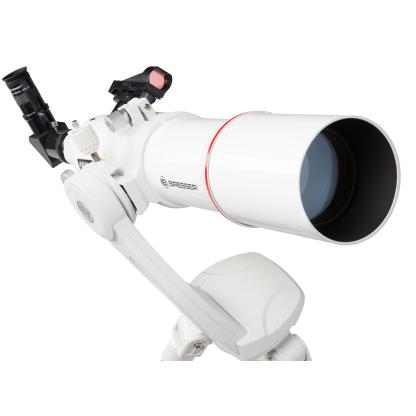

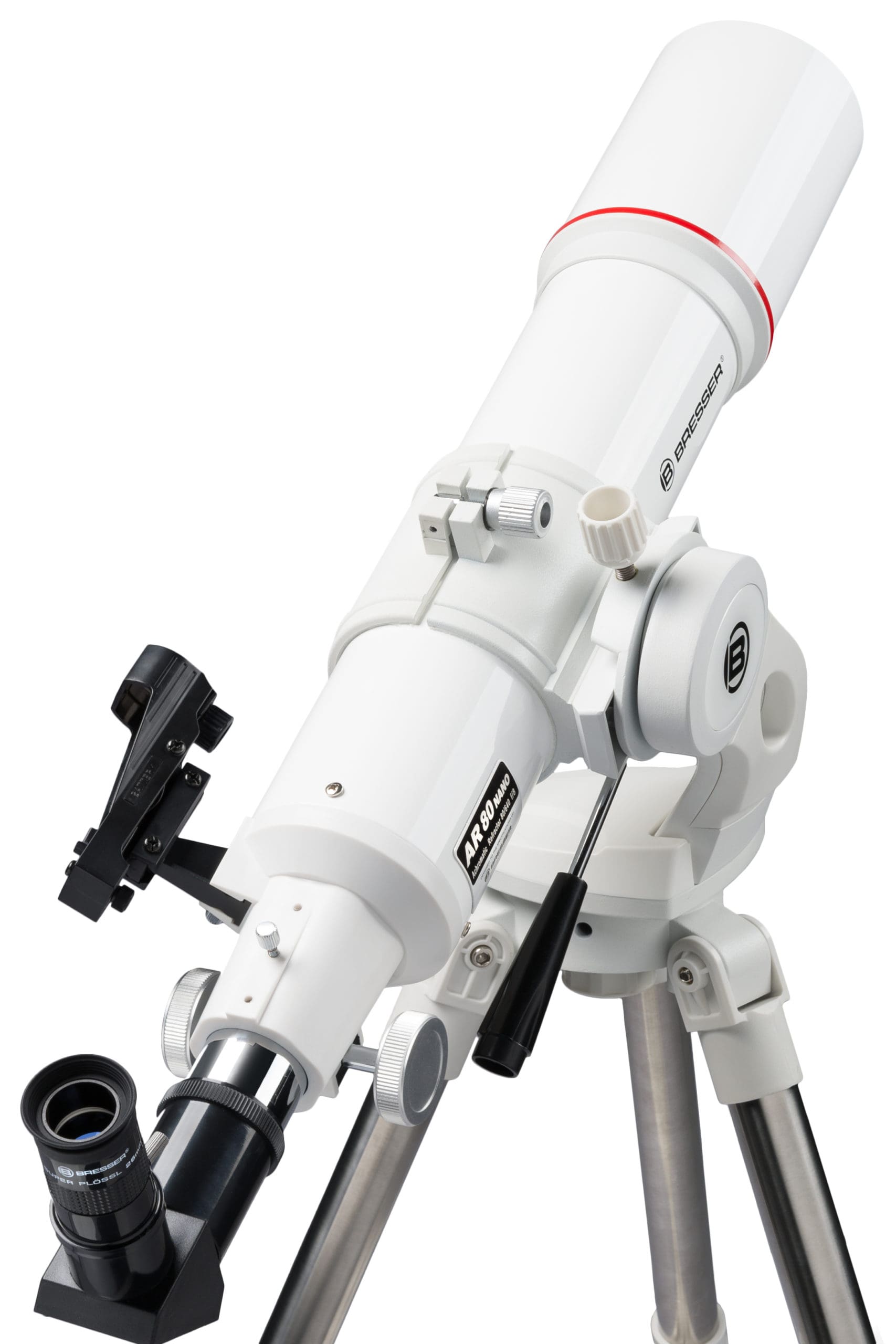

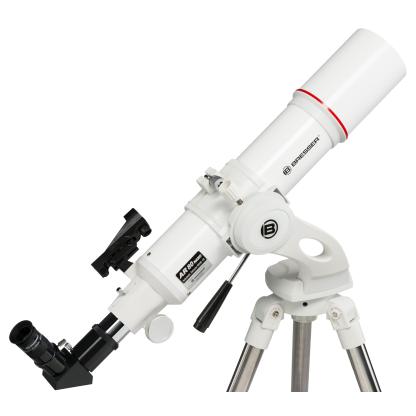

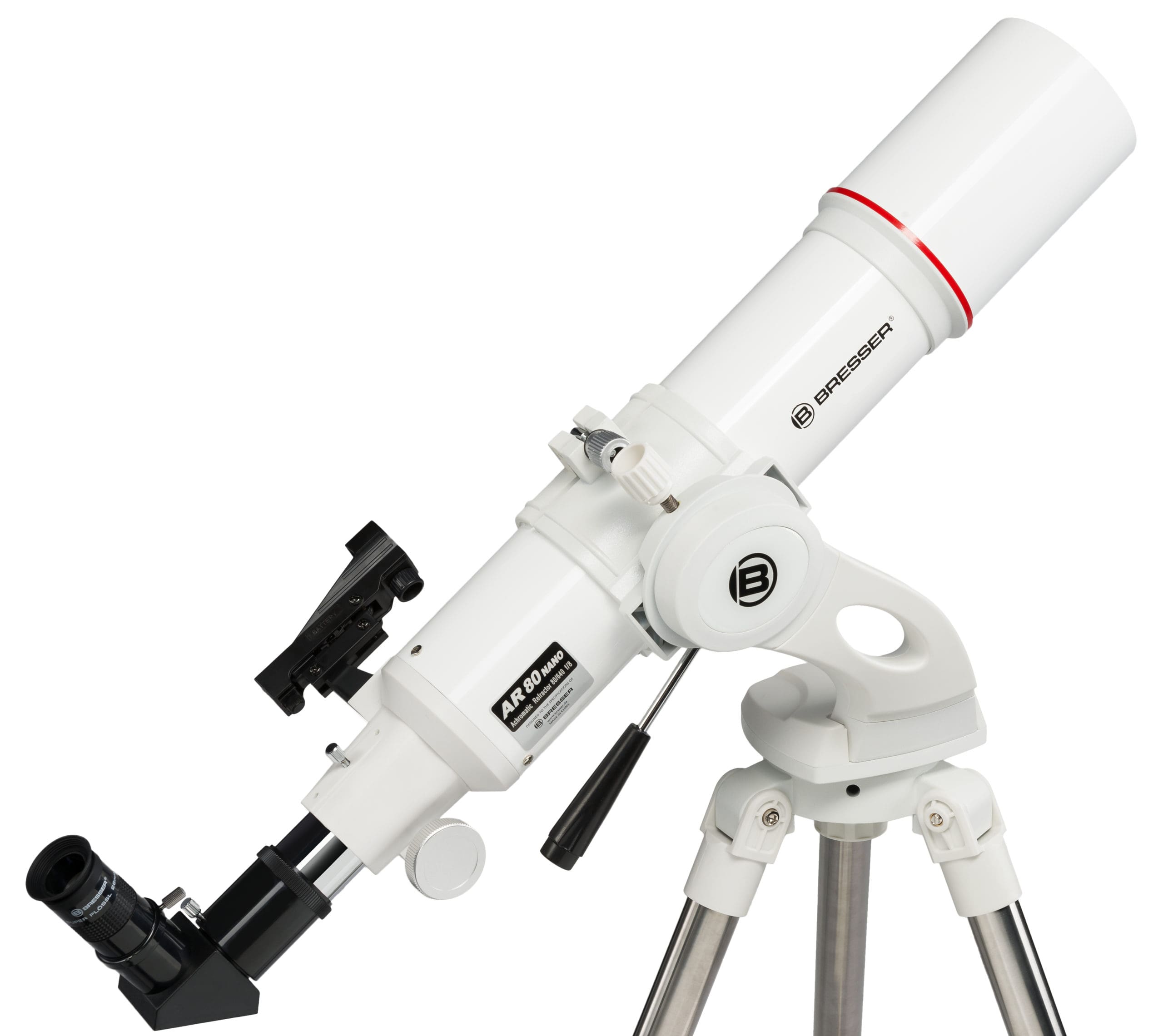

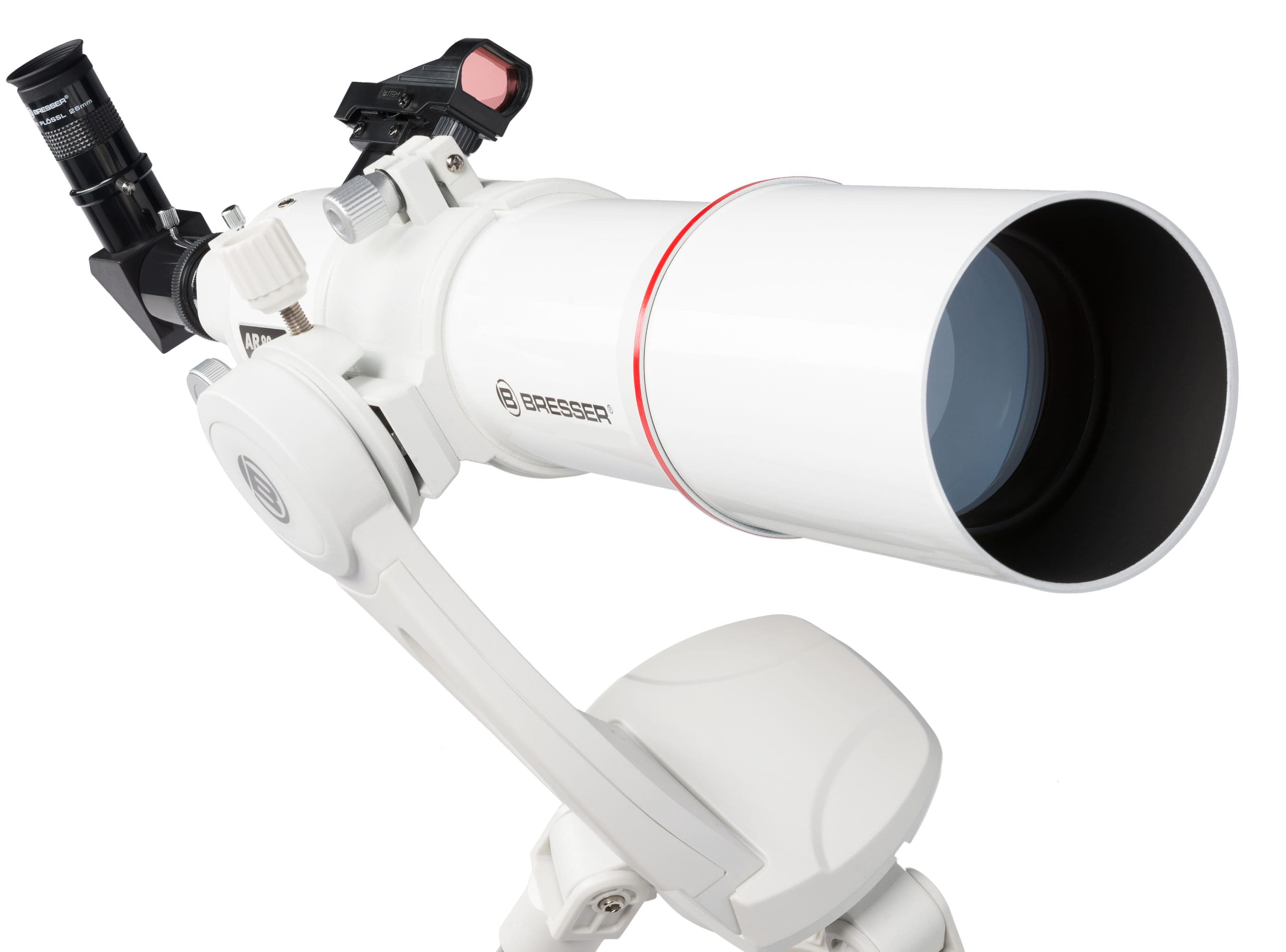

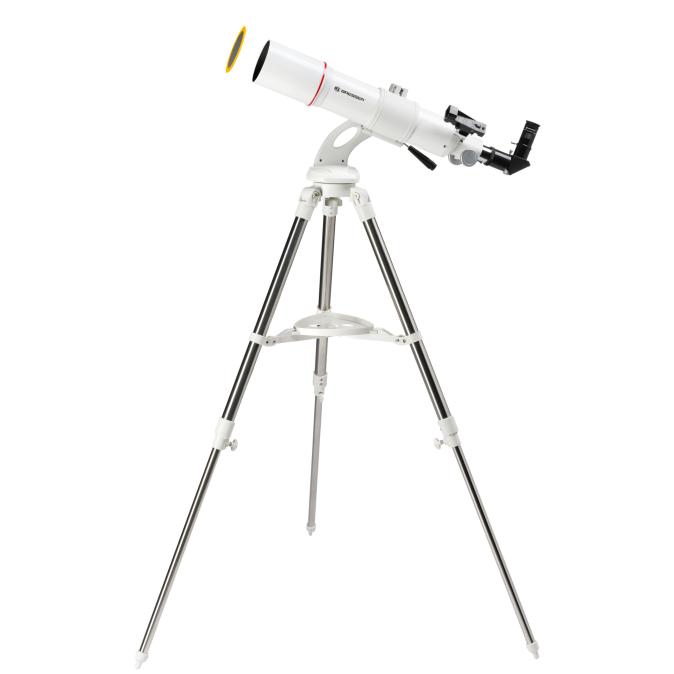

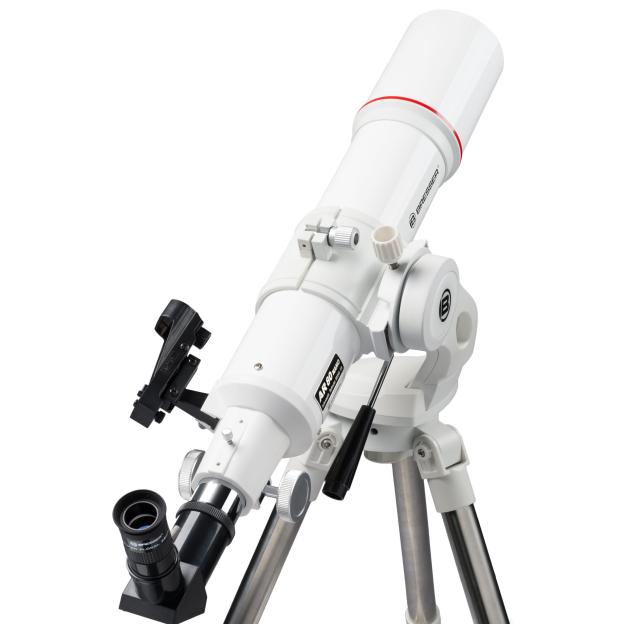

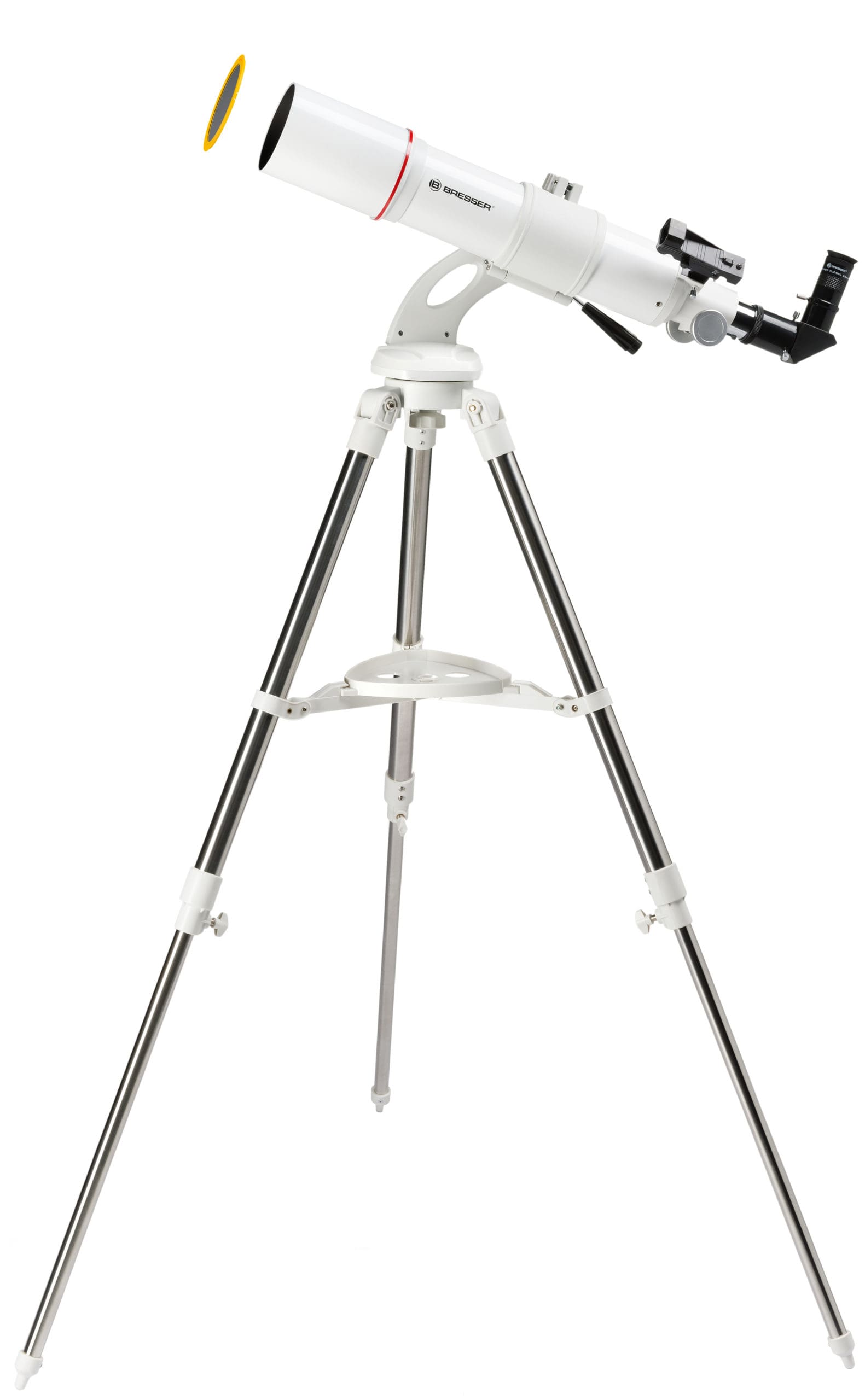

BRESSER NANO AR-80640 AZ Telescope


This Bresser achromatic refracting telescope with a diameter of 80mm and a focal length of 640mm provides you with a good starting point to take a closer look at the night sky.

Sold out!

SKU: 4580640 Categories: , ,


NANO AR-80/640 AZ

  • High quality and compact refractor telescope
  • Richfield telescope also for traveling
  • Easy to use NANO AZ Mount
  • Telescope for night and solar observation; arrives almost pre-assembled
  • Arrives with a wide array of accessories including aperture solar-filter
  • Observation can start immediately
  • Smartphone holder bracket included – for taking pictures
  • Stainless steel field tripod
  • Camera-Adapter Ring T2 (M42x0.75mm) included
  • Star chart software & rotatable star-map

When looking at the technical data, 80mm aperture may not look too impressive. During the observation the impact of the 31 % more light gathering power in respect to a 70mm refractor are easily visible:

  • Details are seen more clearly in the BRESSER NANO AR-80/640 NANO and from a distance of 600 million km the main cloud bands on the planet Jupiter and many Messier objects gets visible. Richfield telescope with high quality achromatic glass lens and a short focal length of 640mm. Suitable also for traveling and to observe large open star clusterns and the milky way.
  • The telescope arrives with a wide array of accessories and almost pre-assembled – observation can start immediately. The BRESSER NANO is a light-to-medium-duty alt-azimuth mount with tripod designed to quickly and easily accept small to medium sized refractors, such as the AR-90s, AR-102s, AR-102xs and the ED-80 APO. Lightweight, fast Newtonians will also match up nicely with the BRESSER NANO AZ mount. As long as your telescope does not exceed 8 pounds and has a Vixen-Style Universal Dovetail bar for mounting the telescope to the mount head, you are good to go.
  • The stainless steel tripod that comes standard with the BRESSER NANO AZ mount has adjustable legs and a wide foot print, which makes the tripod more stable. Spreader vanes with an acessory tray locks against the inside of the legs to secure the tripod even further, and keep vibrations to a minimum.

Do you want to capture what you see ?

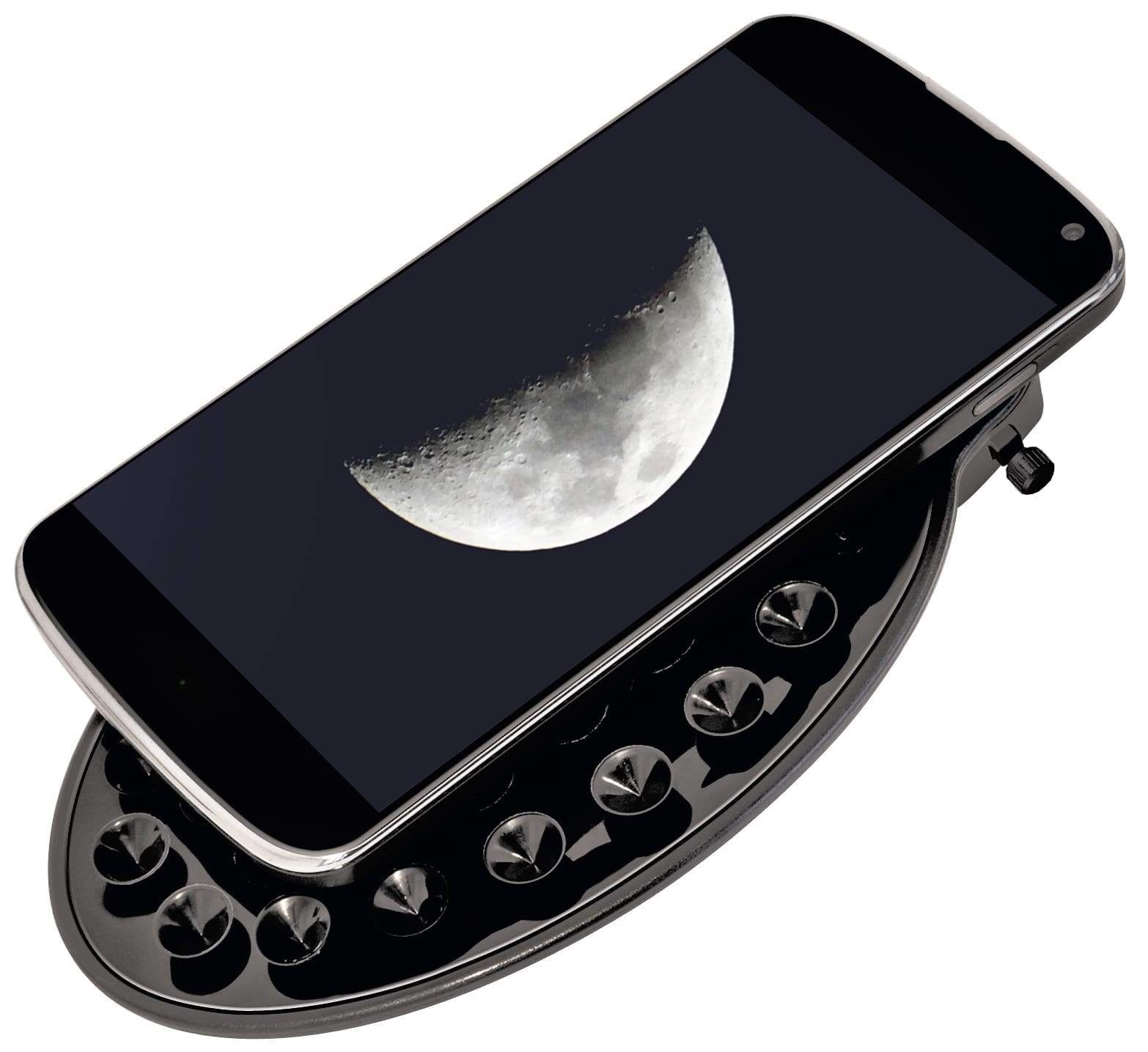

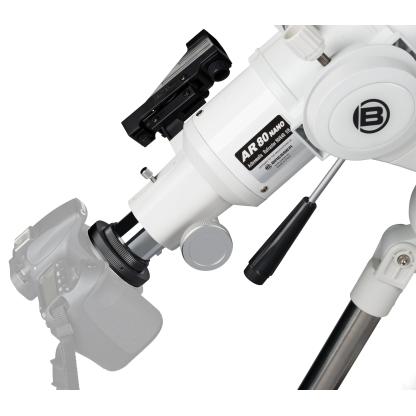

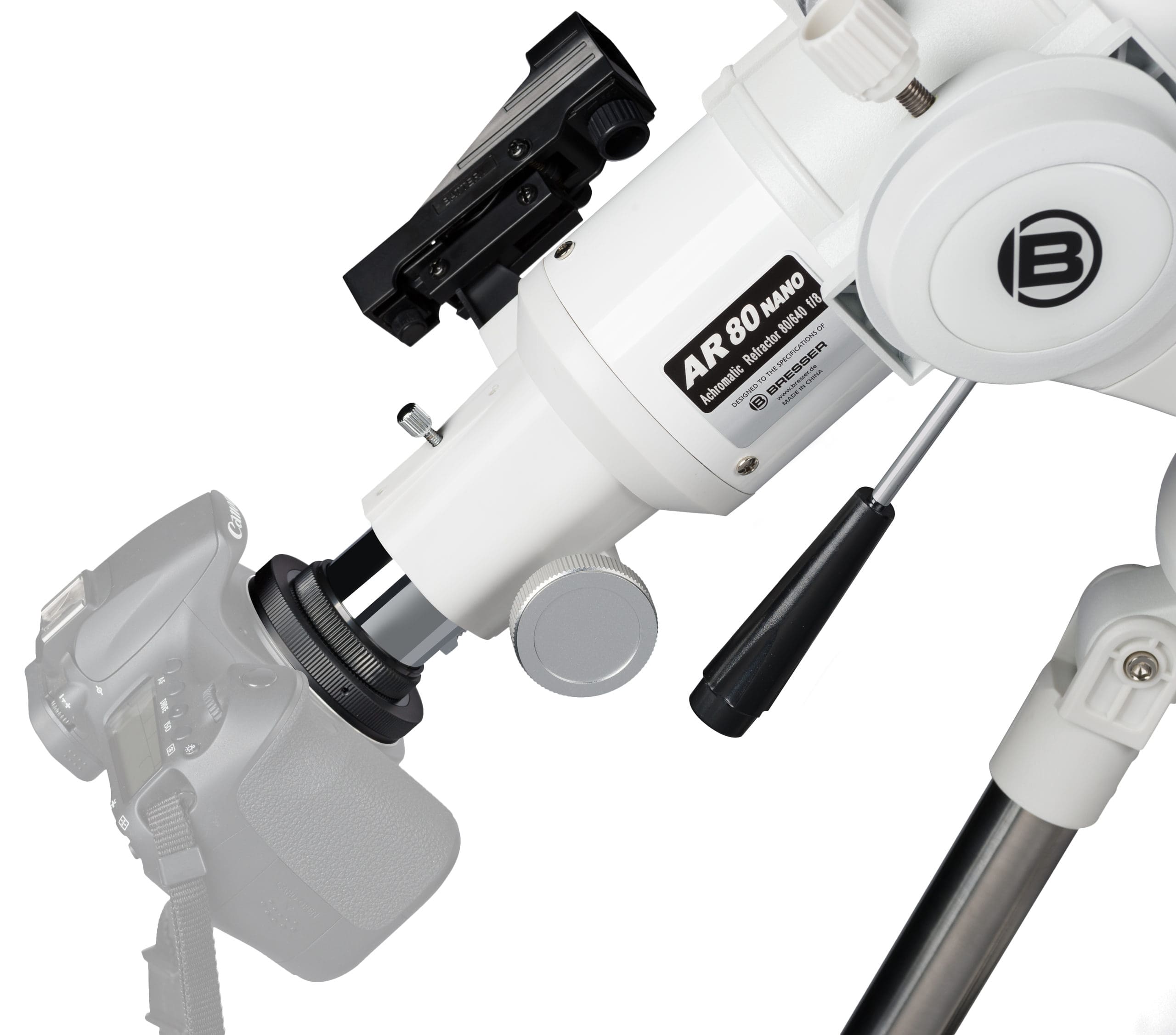

  • With the included smartphone holder bracket you can use your smartphone to easily take colour pictures of celestial objects – like through a telephoto lens ! With the included camera adapter ring T2 you can also attach your DSLR or CCD camera direct to the focuser in order to capture high resolution pictures of the Moon by using short exposure times.

NEW: Now including a high-quality aperture solar-filter for safe observation of sunspots, eclipses and planet transits. Great telescope for night and solar observation.


  • High quality and compact refractor telescope
  • Richfield telescope also for traveling
  • Easy to use BRESSER NANO AZ Mount
  • Telescope arrives almost pre-assembled
  • MgF2-coated optics
  • Magnification with supplied accessories: 25x, (max. suggested: 160x)
  • Focal distance, aperture ratio: 640mm, f/8
  • Stainless steel field tripod
  • Smartphone holder bracket included – for taking pictures
  • Eyepiece diameter: 31.7mm (1.25”)
  • Telescope for night and solar observation


  • Optical tube Messier AR-80/640
  • BRESSER NANO alt/azimuth mount
  • Stainless steel tripod with accessory tray
  • Eyepiece: BRESSER Super Plössl 26mm
  • Red dot finder
  • Diagonal mirror 1,25” (31,7mm)
  • Aperture solar-filter
  • Smartphone camera adapter
  • Camera-Adapter Ring T2 (M42x0.75mm)
  • Star chart software & rotatable star-map


Field Of Application

  • Deep Sky Observation
  • Lunar observation
  • Planetary observation
  • Planetary photography
  • Lunar photography
  • Solar observation

Focus Group

  • Beginners
  • Visual enthusiasts

Product Family

  • Refractor telescope

Optical Specifications

  • Optical design – Achromatic Refractor
  • Maximum recommended magnification – 160
  • Mirror/Lens diam.  – 80 mm
  • Focal length – 640 mm
  • Aperture ratio – 8
  • Angular resolution –  1.76 arc seconds
  • Finderscope – LED-Red Dot Finder

Electronics Hardware & Software

  • Batteries Needed – 1x CR2032, 3V
  • Batteries Included – ✓

General Technical Data

  • Material OTA(Optical Tube Assembly) – Aluminium
  • Colour –  White
  • Material Tripod – Stainless Steel
  • Eyepiece Barrel Diameter – 31.7 mm
  • Mount Type – Azimutal
  • Extended Warranty – 5 years

Dimensions & Weights

  • Total length – 900 mm
  • Total width – 900 mm
  • Total height – 1600 mm
  • Tube length – 690 mm
  • Net Weight total (incl. accessories) – 5300 g
