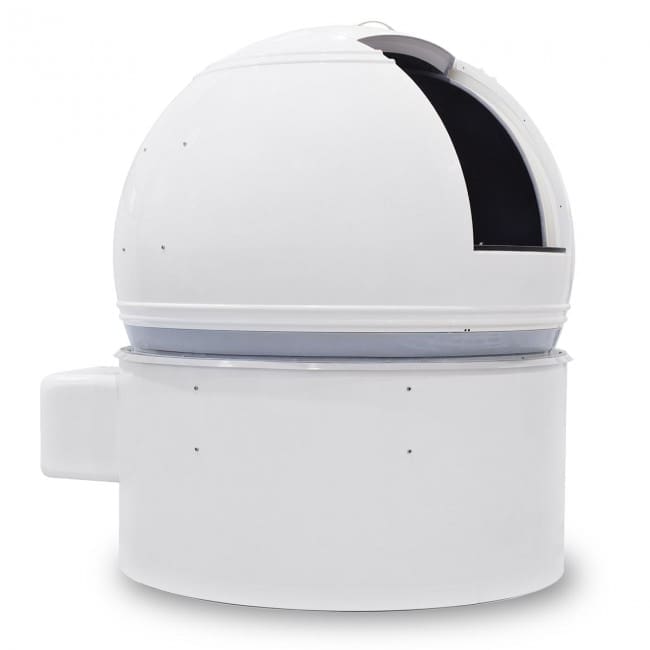

ScopeDome H120 observatory dome, 2m diameter

The main advantages of 2M dome:

-simple and fast installation of the dome, dome will be delivered to you assembled and tested, its installation does not require more work than a typical installation of the telescope
-safe (12V DC) power supply for motors, controll card and heating system, dome motors and control card can be powered directly from a car battery
-the ability to automatically open the shutter on any azimuth using the built-in power ring rotating mechanism (slip ring)
-all the shutter rolls and rotating mechanism are hidden inside the dome to protect it from weather
-tightness better then in larger domes, design and production in 3D and CNC technology allowed us to minimize the space between the rotating parts of the dome

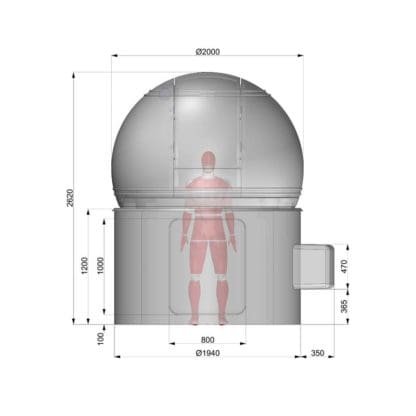

Dome dimentions:

-diameter of the dome: 2000mm
-shutter width: 680mm
-dome height: 1400mm
-diameter of the base: 1940mm
-diameter of the outer base ring: 1940mm
-diameter of the inner base ring: 1475mm
-weight (with pallet): ~ 200 kg

Height with dedicated tower:

-tower H80 : 2300mm
-tower H120 : 2620mm
